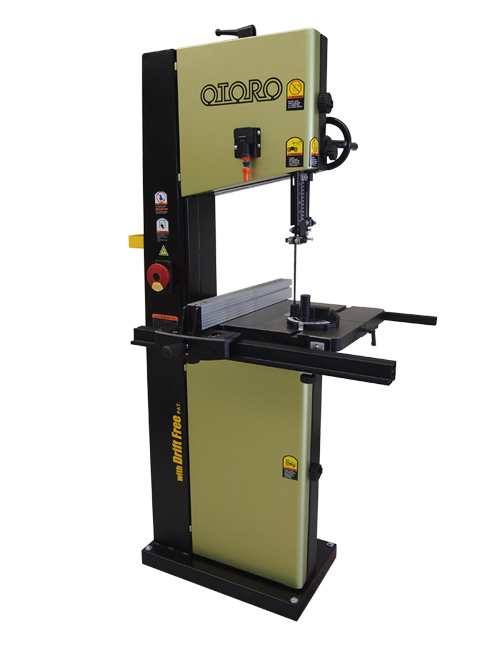

Table rotates, Drift corrected!
OTORO® Drift-Free Bandsaw DF-14X overcomes blade drift with its patented ‘Drift-Free bandsaw table’.
In addition to the 1.5HP motor, the large cutting capacity and the heavy integral frame, the innovative Drift-Free bandsaw table pushes this machine one step ahead of other 14” bandsaws.
The unit includes a 65mm high rip fence, a miter gauge and a laser liner.
Details
Patented ‘Drift-Free bandsaw table’.
The table top rotate slightly right and left to align with the track of blade drift.
What a brilliant idea!
The dust port is placed under the table to collect sawdust efficiently.
 |

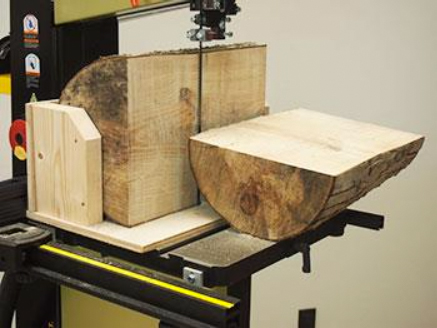

| Large cutting capacity and high power. |
 |

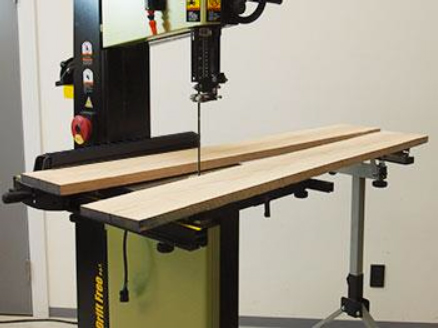

| Resawing a meter long lumber without being annoyed by blade drift. |
 |

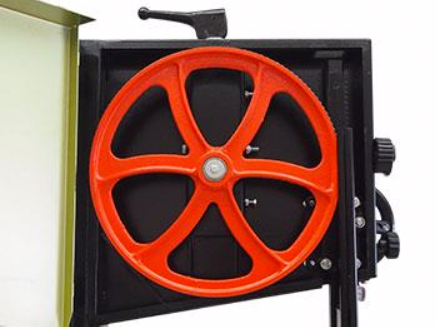

| The heavy-duty cast iron wheel. |
 |

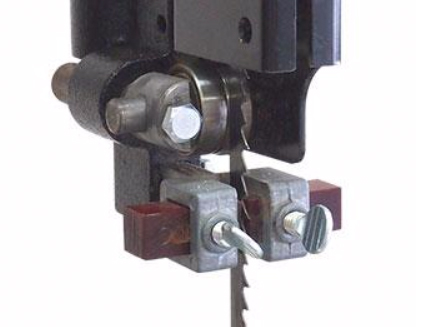

| The block type blade guide is easy to adjust. |
 |

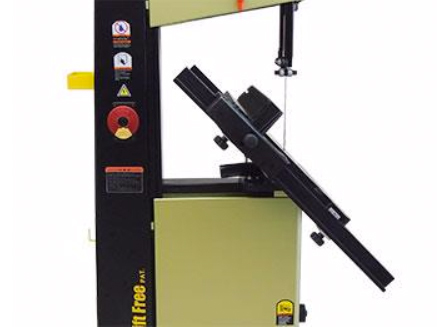

| The table tilt maximum 45° right. |
 |

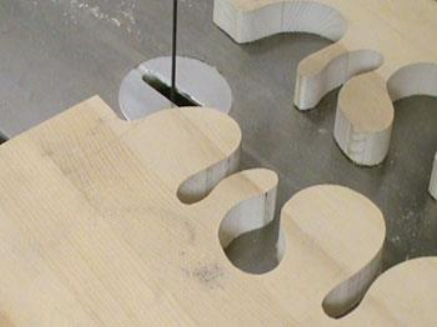

There is no problem cutting small winding curve.
(The blade on the photo: Width 3mm 14tpi)
|
Specifications
| Motor |
1.5HP |
| Wheel |
Φ360mm |
| Cutting Capacity |
Height 325mm / Width 350mm |
| Blade |
Length 2,900mm / Width 3mm - 19mm |
| Table size |
W435mm x D435mm |
| Height to floor |
1000mm |
| Table tilt |
Left tilt 0° / Right tilt 45° |
| Dust port |
Φ38mm (O.D.) |
| Overall Size |
W990mm x D813mm x H1,930mm |
| Net weight |
133kg |
| Standard accessories |
Rip fence
Miter gauge
Laser liner (Mounted on wheel cover)
|
Accessories
OTORO® Bandsaw Work Support
Your “third hand” for resawing.
OTORO Bandsaw Work Support is a good assistive tool for resawing.
The wheel with powerful spring presses lumber against the fence instead of your hands. This improves the efficiency of your work. This is useful especially when you repeat resawing many times.
Capacity: Height 85mm
