It's like a compact planer!!
You can process your material’s thickness and width by attaching your own compact router.
You can also make custom moldings with delicate materials and small pieces.
There are many smart functions in this compact table.
It has the same function as a miniature jointer, molder, and thickness planer.
Details
This compact table has 4 modes
-
| 1 |
 |
Jointer Mode
Plane the edge straight. |
-
| 2 |
 |
Molding Mode
Make a custom molding. |
-
| 3 |
 |
Width Mode
Cut to a uniform width. |
-
| 4 |
 |
Thickness Mode
Cut to a uniform thickness. |

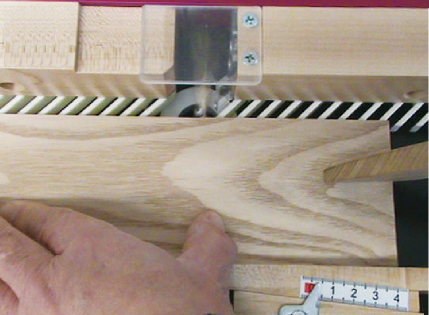

Smart Function 1
You can adjust the fence by as little as 0.1mm by offsetting the in-feed fence, using the jointer mode.
Using a diagonal sliding fence, it works using a 10:1 ratio.
If you slide the fence by 5mm, it adjusts the depth by only 0.5mm in the direction of the arrow.

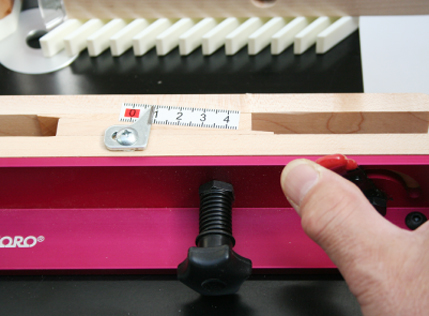

Smart Function 2
When using the thickness mode, you can move the fence with the lever.
It works using a 10:1 ratio. If you move the lever 5mm, the fence will move 0.5mm in or out.

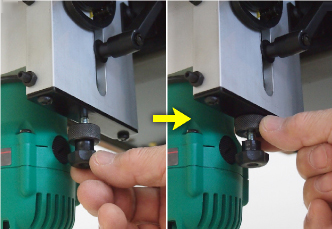

Smart Function 3

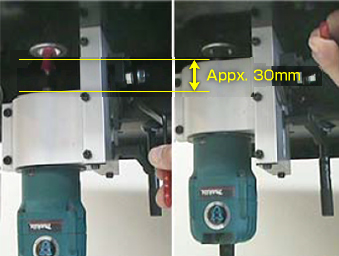

It’s very fast and easy to change the height of the bit with the handle.
You can adjust the height by 30mm.
There is also a height adjustment screw for more precise movements.
Smart Function 4
It is designed to fit in different places and is easy to set up.
The clamp is designed for setting up on a table.
You can set it up on your workbench with a maximum thickness of 50mm.
It is a compact size, so it’s convenient to store and is very portable.
Smart Function 5
Center Ring
There are 3 options for the center hole, depending on your bit size. You can use no ring for large bits, or use one of the 2 included rings for medium and small sized bits.
You can store the center rings in the ring holder under the table, when not being used.
Smart Function 6

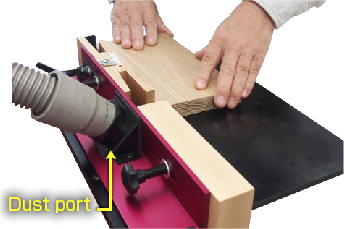

Dust port
It has a dust collection port, so you can collect sawdust easily.
The outside diameter is 48.5mm. The inside diameter is 44.5mm.
Specifications
| Product Dimensions |
Width 410mm x Depth 300mm x Height 240mm |
| Table Size |
Width 315mm x Depth 300mm x Thickness 8mm |
| Workbench Possible Size |
Maximum Size: 50mm |
| Maximum Bit Height Adjustment |
30mm |
| In-Feed Fence Range Adjustment |
3mm |
| Center Ring Sizes |
Without center ring: 40mm
With large center ring: 24mm
With small center ring: 12mm |
| Dust Collection Port Diameter |
Outside Diameter：48.5mm |
Accessories

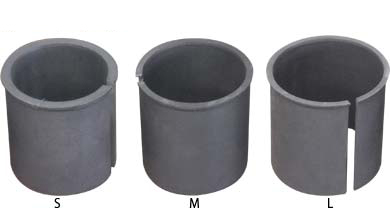

Router Adapter
You need an adapter for most routers.
The adapter is for inserting your router into the OTORO Compact Router Table TTX2.
You need the correct size adapter that fits your router.
Some large type of router can be used without an adapter.
Please take care when setting up your router with the OTORO Compact Router Table TTX2. The contraction slit of the adapter must line up with the one on the table.

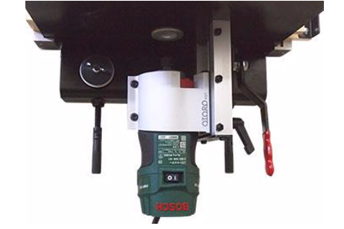

TTX2 for Bosch Palm Router Version available.
OTORO has designed a dedicated version of TTX2 for BOSCH palm router due to its unique body shape.
BOSCH palm router is mounted on TTX2 for Bosh Palm Router Version without using any adaptors.

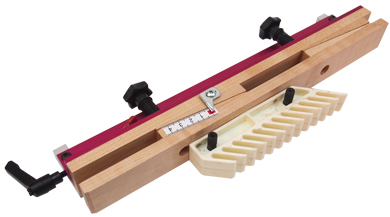

Double Fetherboard
Parallel Fence
