An innovative jig for precise circle cutting on bandsaw.
It flexibly cope with changes of tilt angle of bandsaw table.
Use the jig and cut wood pieces into various shape of cylinder, truncated cones and more.
Circle Cutting Jig for scroll saw is also available.
Details
Tilt bandsaw table and cut truncated cones.
Swing the jig and start circle cutting.

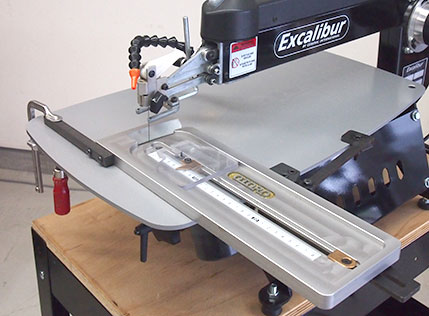

Bandsaw version and Scroll saw version are available.

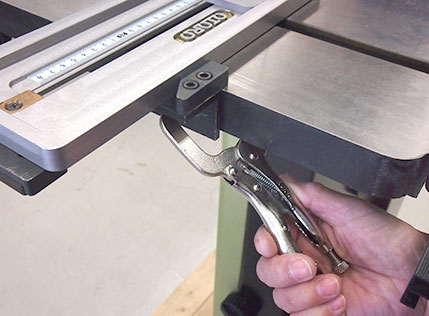

Easily mounted on bandsaw table (or scroll saw table) with a clamp. (Clamp not included.)

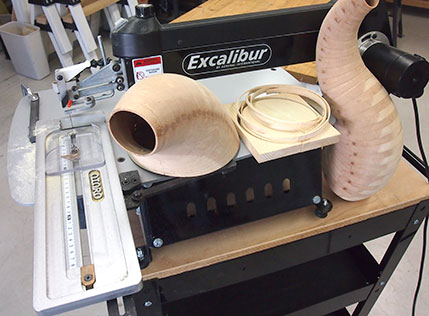

Making bowls and vases using the circle cutting jig.
Components
|

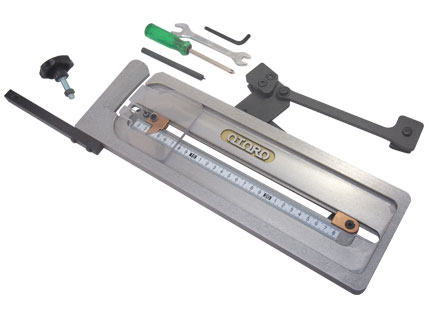

Circle Cutting Jig for bandsaw
|
|
Circle Cutting Jig for scroll saw |
Specifications
Size |
W380mm x D120mm x H16mm
W500mm x D135mm x H16mm (When lever mounted.)
|
Maximum cutting diameter |
560mm |
Minimum cutting diameter |
70mm |
Available tilt angle |
0° - 45° (Right) |
Recommended blade size (Width) |
3mm - 6mm |
Note: This jig may not be mounted on some bandsaws and scroll saws.
Accessories

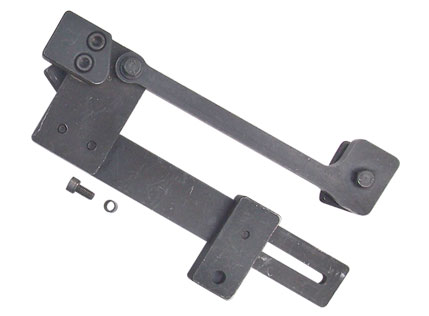

Circle Cut Jig mounting hardware for scroll saw.
Circle Cut Jig mounting hardware for bandsaw.
